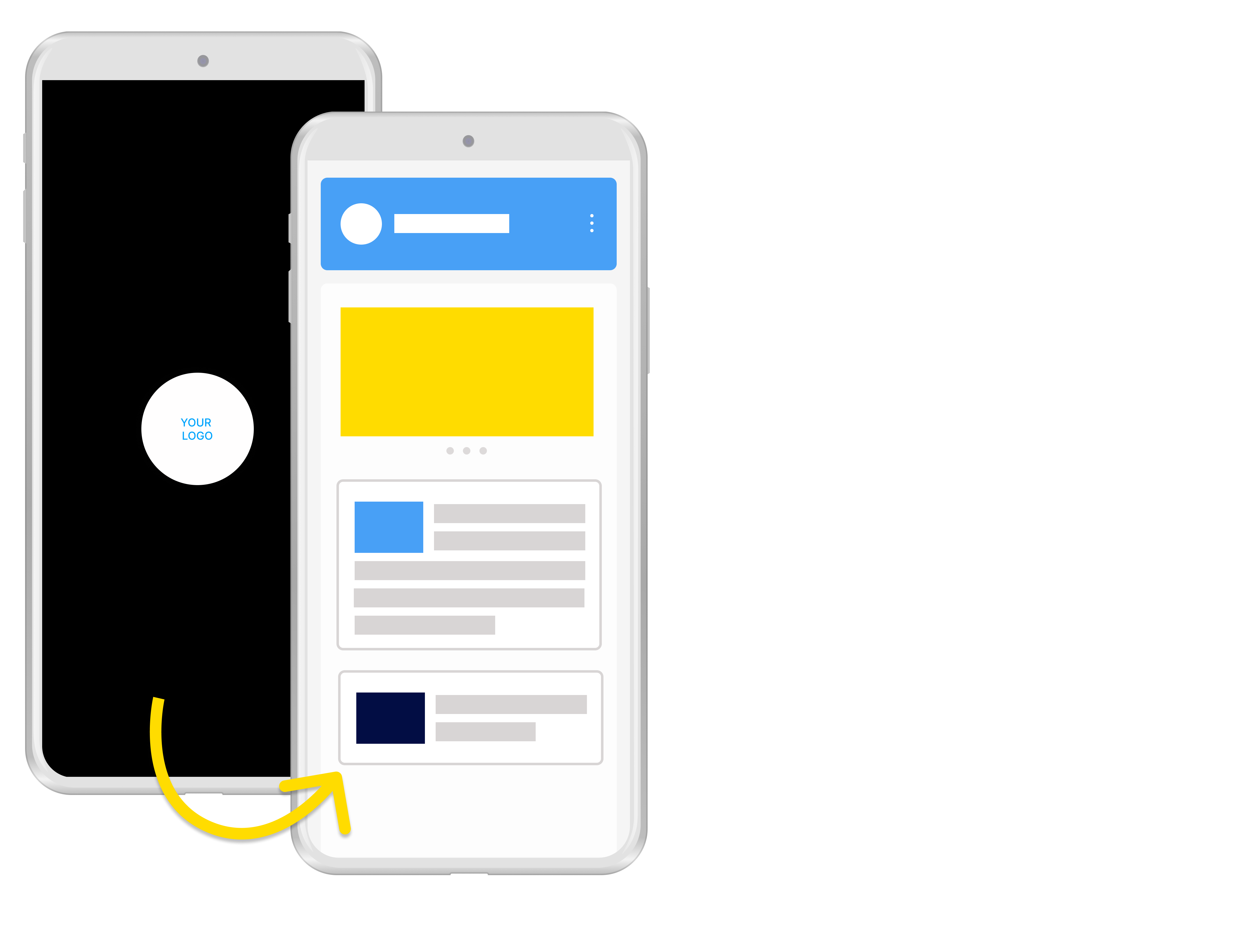

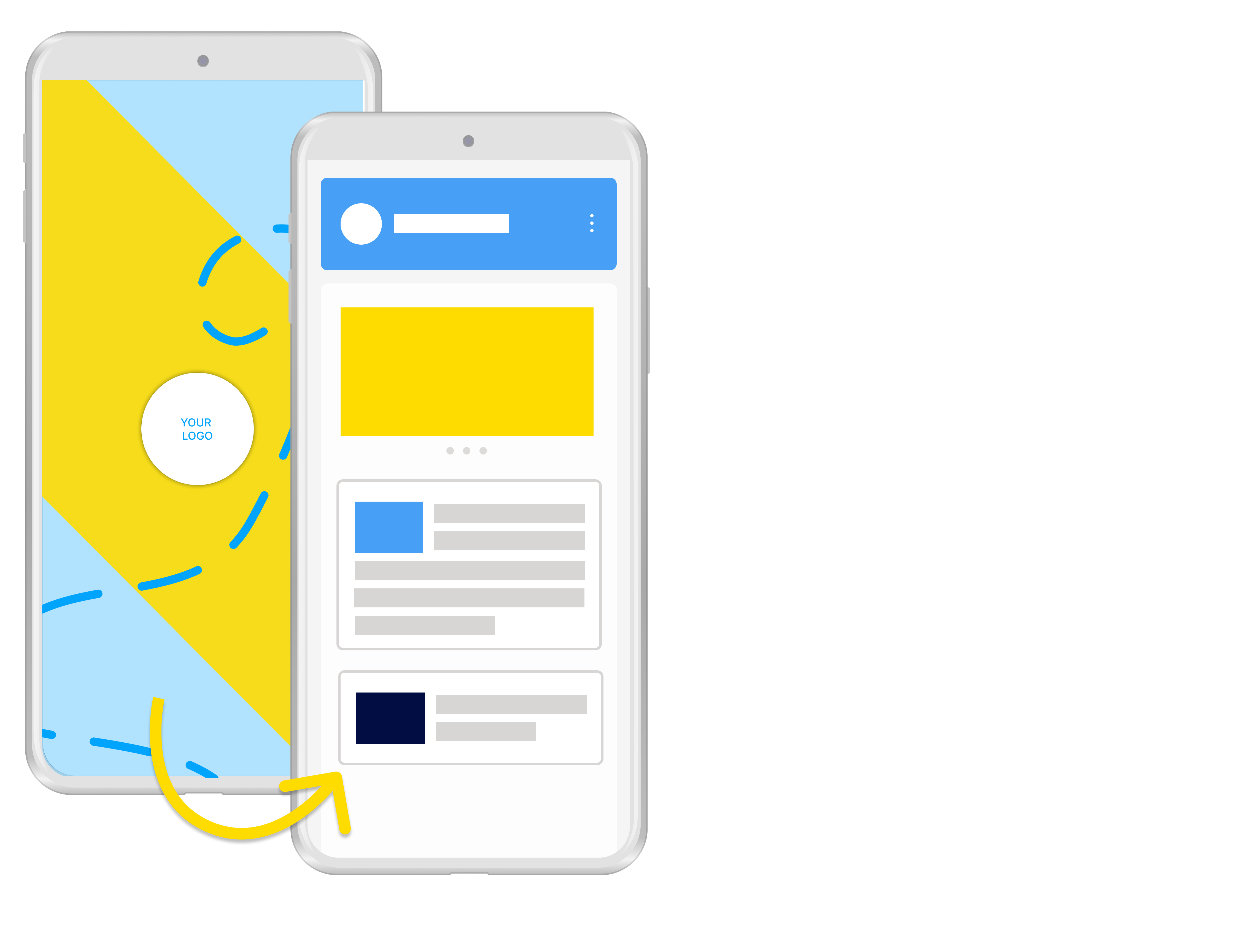

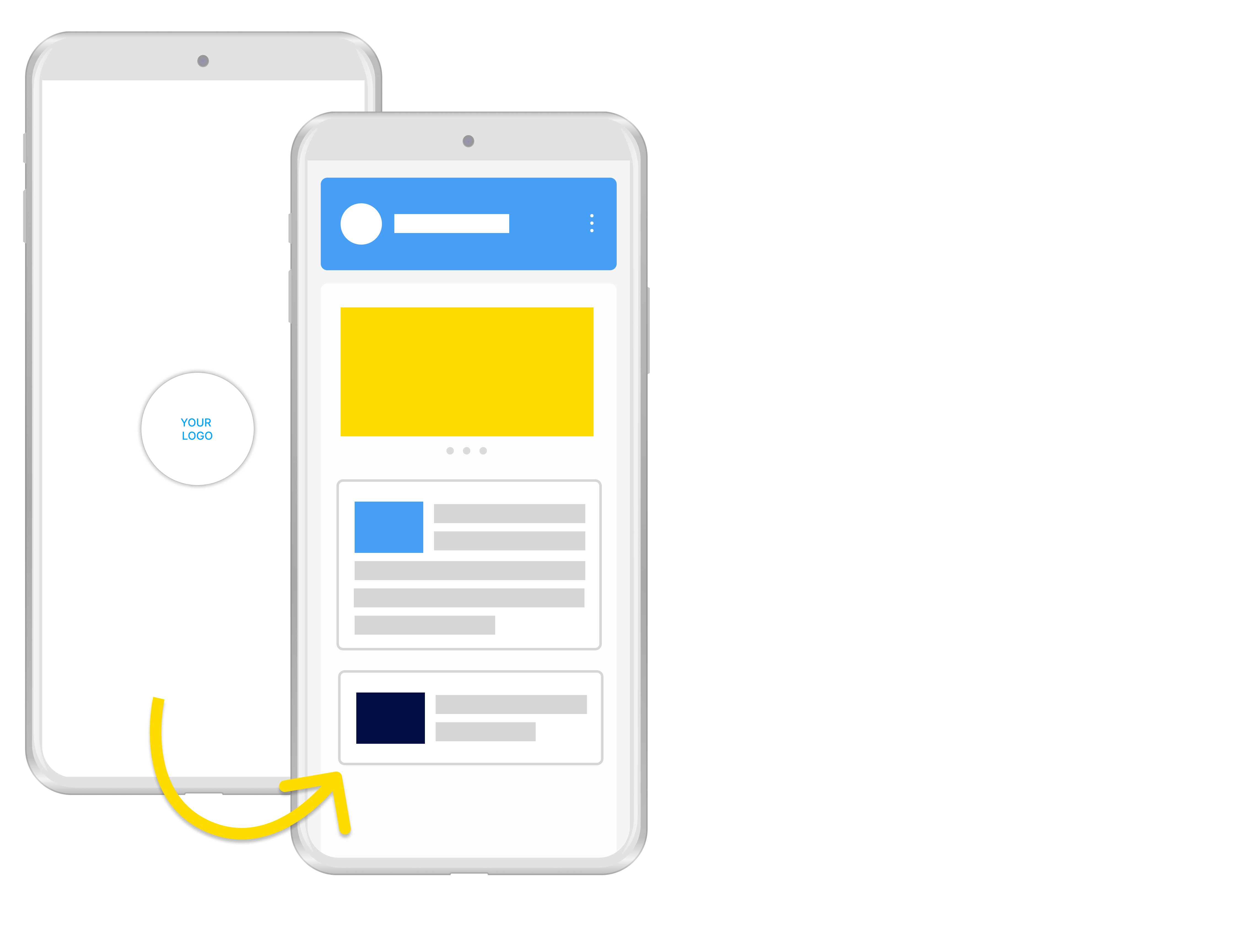

The launch image is visible on mobile devices when launching the app for the first time or when restarting the app. The launch image fills the whole screen for a few seconds until the app data loads and the app content is available. This bridges any gap in loading time and provides the user a seamless experience.
Users on Android 12 or 13 devices, on opening or restarting their app will momentarily see the login logo before the launch image.
The same launch image is used for all mobile devices. Therefore the launch image must fit portrait and landscape screens, as well as different resolutions and screen sizes.
Requirements
 |
Size: minimum 2732 px x 2732 px, maximum 5000 px x 5000 px |
|
Format: png |
|
Resolution: 72 dpi |
|
Color profile: sRGB |
|
File name: LaunchImage.png |
 |
Create an image that has the main elements in the middle (safe zone) and the area around it with matching detail but unimportant details |
 |
Transparency: not allowed (must not have alpha channel) |
A very large part of the border will be cut off! Therefore, it is important to place graphical information in the safe zone of the launch image, as the safe zone will always be displayed.

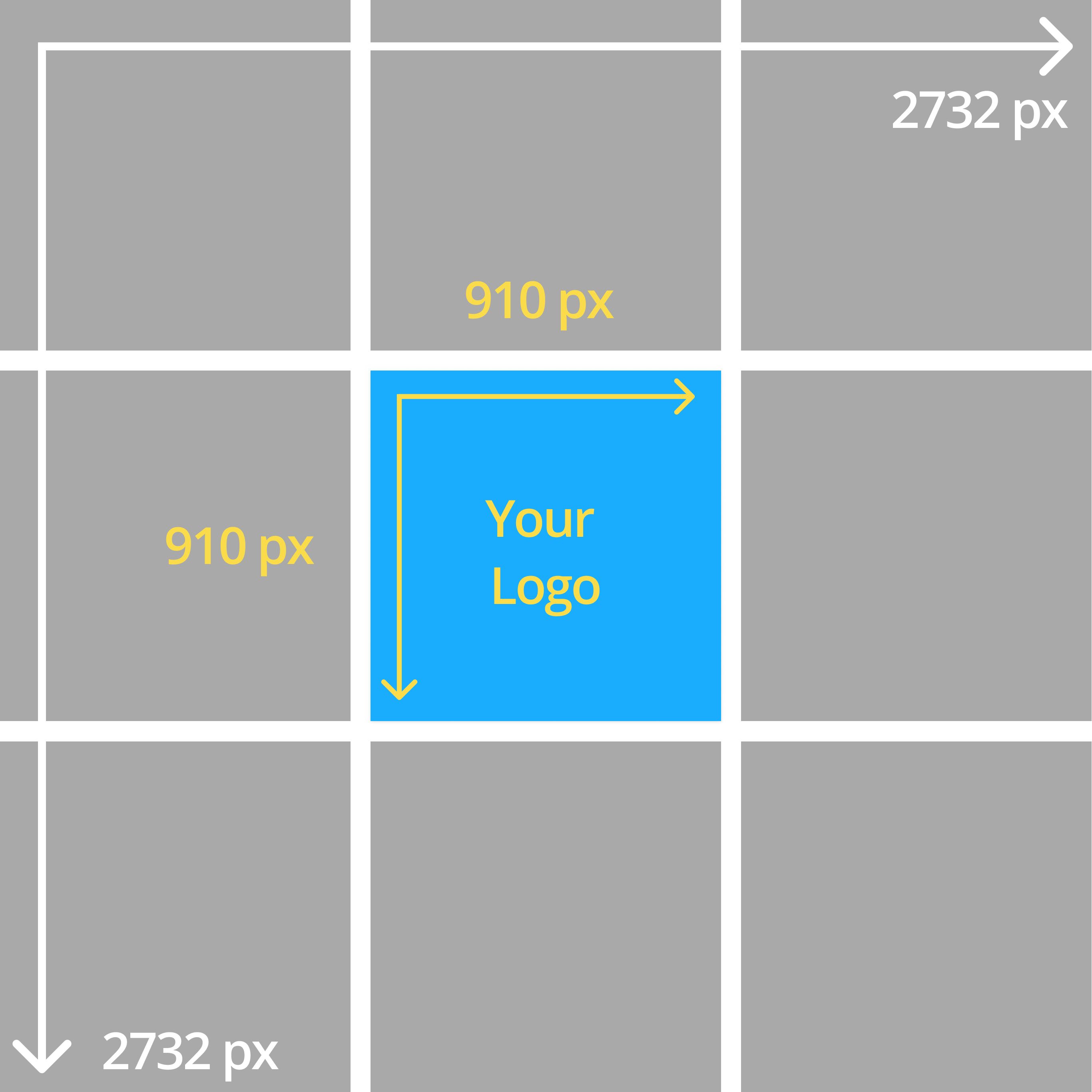

Example: Safe Zone
For a 2732 px x 2732 px launch image the safe zone is 910 px 910 px.
